3G30X4
Succión simple
Sin fuga
CE, ISO
38CrMoAl
Sello mecánico
max 25 bar
1.1KW - 4KW
ISO, CE
84136040

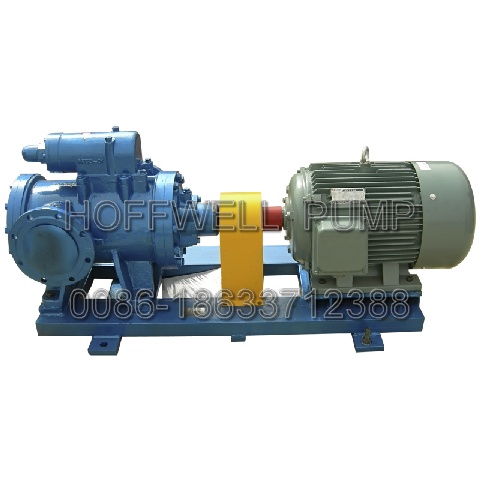

Bomba de tornillo múltiple
Horizontal
Alimentación, Química, Aceite
Hierro fundido ht200
Fundición Nodular / Bronce / Aluminio
1.2m3 / h - 3.6m3 / h
1450 rpm - 960 rpm
HOFFWELL
Cangzhou, china
Modelo | Fluir | Presión | Velocidad | Poder | Tamaño de entrada y amp; salida | Viscosidad | Temperatura | Eficiencia |
3G30X4 / 46 | 1.2-3.6m3 / h | 2.5Mpa | 1450-960rpm | 1.1-4KW | 30 / 25mm | ≤760cst | ≤120 grados C | 69% |
Detalles de empaque | 710 mm * 290 mm * 380 mm para un juego completo de bomba con estuche de madera estándar de exportación. | |||||||
Garantía | 12 meses desde la entrega de la bomba. | |||||||
El tiempo de entrega | Con 10 días. |
Servicio postventa profesional.
Modelo | Escape Presión MPa | Capacidad q | Velocidad r / min | (NPSH) r metro | Eficiencia η% | Motor | ||
m 3 / h | L / min | Poder kw | Modelo | |||||
25 y tiempos; 4-46 | 1.0 | 0.8 | 13 | 1450 | 4 | 62 | 0.75 | Y802-4 |
2.5 | 0.6 | 10 | 60.6 | 1.5 | Y90L-4 | |||
1.0 | 2.0 | 33 | 2900 | 4.5 | 59.4 | 1.5 | Y90S-2 | |
2.5 | 1.6 | 26 | 69 | 3 | Y100L-2 | |||
30 y tiempos; 4-46 | 1.0 | 1.6 | 26 | 1450 | 4.5 | 63.5 | 1.1 | Y90S-4 |
2.5 | 1.2 | 20 | 61 | 2.2 | Y100L1-4 | |||
1.0 | 3.6 | 60 | 2900 | 5 | 60 | 2.2 | Y90L-2 | |
2.5 | 3.2 | 53 | 69 | 4 | Y112M-2 | |||
36 y tiempos; 4-46 | 1.0 | 2.8 | 46 | 1450 | 4.5 | 66 | 2.2 | Y100L1-4 |
2.5 | 2.4 | 40 | 66.5 | 4 | Y112M-4 | |||
1.0 | 6.5 | 108 | 2900 | 5 | 60.5 | 4 | Y112M-2 | |
2.5 | 6 | 100 | 72 | 7.5 | Y132s2-2 | |||
42 y tiempos; 4-46 | 1.0 | 4.8 | 80 | 1450 | 5 | 62 | 4 | Y112M-4 |
2.5 | 4.2 | 70 | 73 | 5.5 | Y132S1-4 | |||
1.0 | 10.5 | 175 | 2900 | 5.5 | 61 | 5.5 | Y132s1-2 | |
2.5 | 10 | 166 | 72 | 15 | Y160m2-2 | |||
45 y tiempos; 4-46 | 1.0 | 6.3 | 106 | 1450 | 5 | 70 | 3 | Y100L2-4 |
2.5 | 5.9 | 99 | 74 | 7.5 | Y132M-4 | |||
1.0 | 13.5 | 225 | 2900 | 5.5 | 60 | 7.5 | Y132s2-2 | |
2.5 | 13 | 217 | 75 | 15 | Y160m2-2 | |||
60 y tiempos; 4-46 | 1.0 | 15.5 | 255 | 1450 | 5 | 71.3 | 11 | Y160M-4 |
2.5 | 14.5 | 245 | 74 | 15 | Y160L-4 | |||
1.0 | 32 | 533 | 2900 | 5.5 | 63 | 18.5 | Y160L-2 | |
2.5 | 31.5 | 525 | 77 | 37 | Y200l2-2 | |||
70 y tiempos; 2-46 | 0.6 | 24 | 400 | 1450 | 5 | 71 | 7.5 | Y132M-4 |
1.0 | 23.5 | 390 | 75 | 11 | Y160M-4 | |||
1.6 | 22.5 | 370 | 76 | 15 | Y160L-4 | |||
70 y tiempos; 4-46 | 1.0 | 24.5 | 408 | 1450 | 5 | 72.5 | 18.5 | Y180M-4 |
2.5 | 23.5 | 392 | 79 | 30 | Y200L-4 | |||
80 y tiempos; 2-46 | 0.6 | 36.5 | 608 | 1450 | 5 | 72 | 11 | Y160M-4 |
1.0 | 35 | 594 | 75.5 | 18.5 | Y180M-4 | |||
1.6 | 34.5 | 575 | 76.5 | 22 | Y180L-4 | |||
80 y tiempos; 4-46 | 1.0 | 37 | 617 | 1450 | 5.5 | 72 | 30 | Y200L-4 |
2.5 | 35 | 590 | 78.1 | 45 | Y225M-4 | |||
100 y tiempos; 2-46 | 0.6 | 72.5 | 1208 | 1450 | 5 | 73 | 22 | Y180L-4 |
1.0 | 71 | 1183 | 77 | 37 | Y225S-4 | |||
1.6 | 60.5 | 1158 | 79 | 45 | Y225M-4 | |||
100 y tiempos; 4-46 | 1.0 | 72.5 | 1208 | 1450 | 5.5 | 73 | 55 | Y250M-4 |
2.5 | 70 | 1165 | 78.5 | 75 | Y280S-4 | |||
S100 y tiempos; 3-27 | 0.6 | 72 | 1196 | 1450 | 6 | 62 | 22 | Y180L-4 |
1.6 | 70 | 1160 | 72 | 55 | Y250M-4 | |||
2.5 | 69 | 1145 | 74 | 75 | Y280S-4 | |||
S120 y tiempos; 3-27 | 0.8 | 123 | 2055 | 1450 | 6 | 74.5 | 55 | Y250M-4 |
1.5 | 120 | 2010 | 76 | 90 | Y280M-4 | |||
2.5 | 115 | 1920 | 78.5 | 132 | Y315M-4 |
Modelo | Fluir | Presión | Velocidad | Poder | Tamaño de entrada y amp; salida | Viscosidad | Temperatura | Eficiencia |
3G30X4 / 46 | 1.2-3.6m3 / h | 2.5Mpa | 1450-960rpm | 1.1-4KW | 30 / 25mm | ≤760cst | ≤120 grados C | 69% |
Detalles de empaque | 710 mm * 290 mm * 380 mm para un juego completo de bomba con estuche de madera estándar de exportación. | |||||||
Garantía | 12 meses desde la entrega de la bomba. | |||||||
El tiempo de entrega | Con 10 días. |
Servicio postventa profesional.
